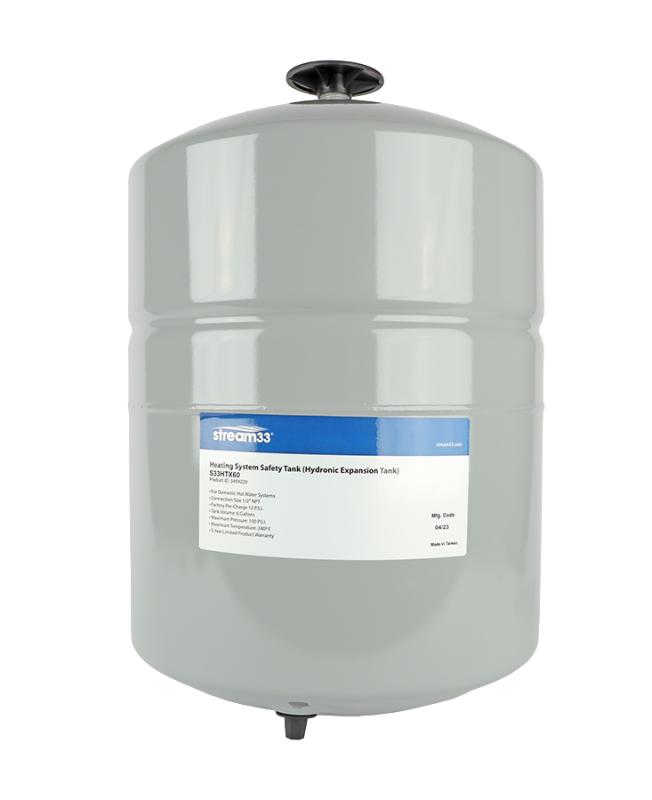

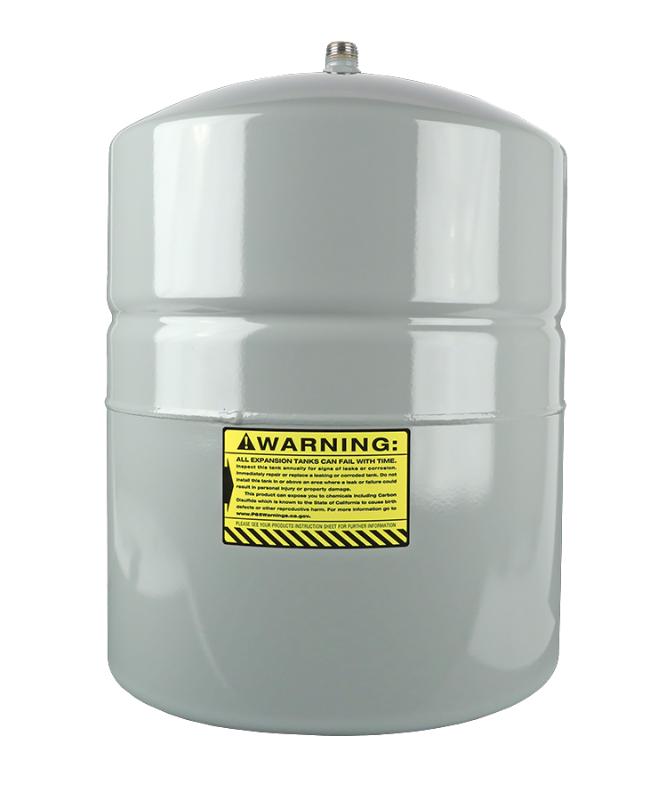

60 Hydronic Expansion Tank

SKU: S33HTX60 | Product ID: 3499220

Stream33 S33HTX60 60 Hydronic Expansion Tank

FEATURES

  • Temperature rating: 240℉ maximum
  • Pressure rating: 100 PSI maximum
  • Adjustable Factory preset pressure: 12 PSI
  • 5 year warranty



Description

Hydronic Expansion Tanks tanks are diaphragm type hydropneumatic tanks designed for pressure control of residential and commercial hydronic heating systems. A pre-charged air chamber allows for system water expansion. The air charge is controlled via a charging valve located on the top or bottom of the tank. Note: These tanks are not to be used on open or potable (domestic) water systems.

Additional information

Height (in)

7-1/4

Diameter (in)

11.5

Acceptance Capacity

3

Color

Green

Capacity (Gallons)

6.0

Diaphragm Type

Hydropneumatic

End Connection Type

1/2" MNPT

Inlet Connection Size (in)

1/2

Material

Shell: Drawn Steel; Coating: Epoxy; Diaphragm: Butyl Rubber

Pressure Rating (PSI)

100

Temperature Rating (℉)

240

Type

Hydronic Expansion Tanks

Warranty

5 Years
