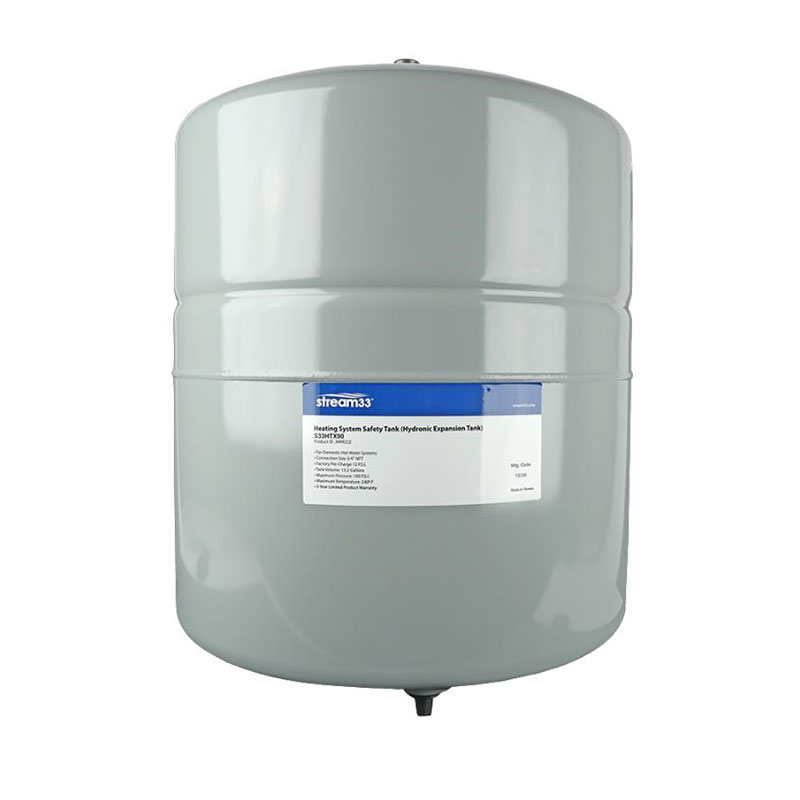

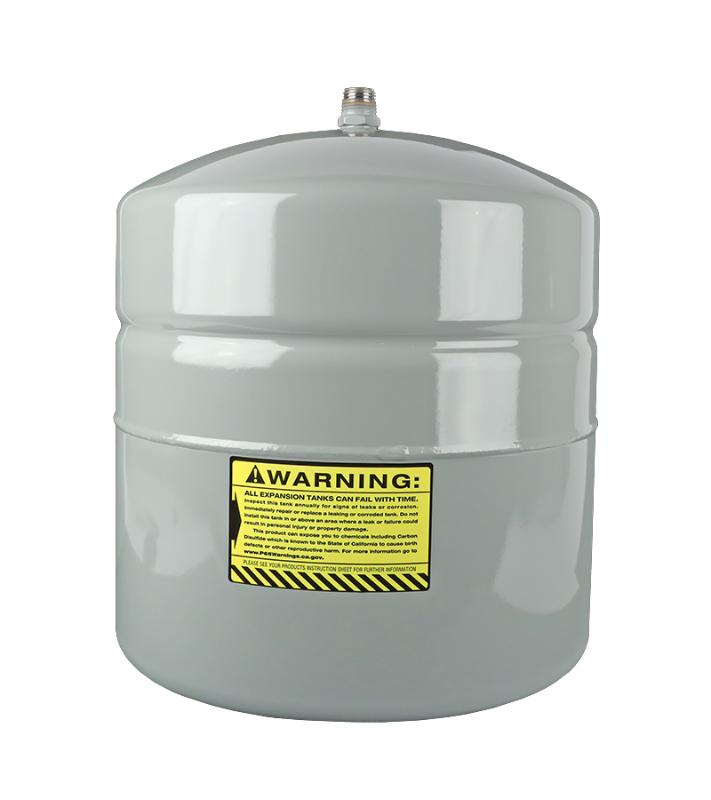

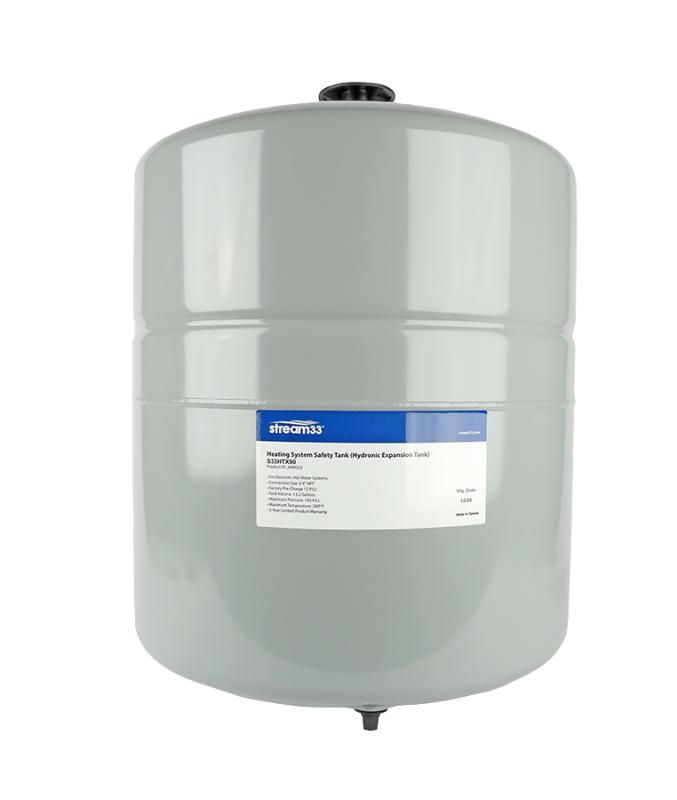

90 Hydronic Expansion Tank

SKU: S33HTX90 | Product ID: 3499222

Stream33 S33HTX90 90 Hydronic Expansion Tank

FEATURES

  • Temperature rating: 240℉ maximum
  • Pressure rating: 100 PSI maximum
  • Adjustable Factory preset pressure: 12 PSI
  • 5 year warranty



Description

Hydronic Expansion Tanks tanks are diaphragm type hydropneumatic tanks designed for pressure control of residential and commercial hydronic heating systems. A pre-charged air chamber allows for system water expansion. The air charge is controlled via a charging valve located on the top or bottom of the tank. Note: These tanks are not to be used on open or potable (domestic) water systems.

Additional information

Height (in)

20-3/4

Diameter (in)

16

Acceptance Capacity

6

Color

Green

Capacity (Gallons)

15

Diaphragm Type

Hydropneumatic

End Connection Type

3/4" MNPT

Inlet Connection Size (in)

3/4

Material

Shell: Drawn Steel; Coating: Epoxy; Diaphragm: Butyl Rubber

Pressure Rating (PSI)

100

Temperature Rating (℉)

240

Type

Hydronic Expansion Tanks

Warranty

5 Years
